CLARK Electric reach truck SRX14 / SRX16 1400 / 1600 kg

CLARK SRX14/16

Reach Truck

Capacity: 1400 / 1600 kg @ 600mm LC



SRX14/16

SRX14 1400 kg
SRX14 1600 kg

Brochure
Spec Sheet
Video
Review
Application example
Press release

max. 1600 kg

max. 1600 kg

max. 10500 mm

max. 10500 mm

max. 14 km/h

max. 14 km/h

7.1 kW

7.1 kW

max. 775 Ah/5hr

max. 775 Ah/5hr

min. 2731 mm

min. 2731 mm



Are you looking for a solid reach truck and have high expectations?

We have the answer: CLARK’s SRX Reach Truck - including a wide range of standard configurations.

With high travel speed being standard (up to 14 km/h), support arm brake not subject to wear and tear and top safety features, CLARK reach trucks of the SRX series optimize productivity at your warehouse. The robust, reliable and high-performance reach truck by the inventor of the forklift was designed to meet even the highest expectations for the most sophisticated purposes.

CLARK SRX14-16

High capacities and high lift heights

Robust structure and stability Nested I-sections The upright rails with an I-section show a 55% higher torsional rigidity than common flat profiles Lower deformation even when under lateral pressure.

Result:
Durability and stability are enhanced - even at high lift heights.

Maximum visibility

Overhead guard
The overhead guard safety bars are in alignment with the driver’s line of sight.

Maximum visibility

Visibility through the upright.
Maximum visibility through the upright thanks to particularly wide upright bars and a laterally rotated center cylinder.

Useful options available

Zum Beispiel:
Fork camera with monitor for safety and high throughput rate.

Mast damping

Gently move loads.
Gentle lifting and lowering due to integrated hydraulic damping system Soft transition between upright rails No loud banging when lowering Increases durability of the components.

No-wear support arm brakes

Enhanced safety as a standard configuration.
Two no-wear support arm brakes provide efficient braking each time brakes are deployed. Unlike in drum brakes, the brakes do not require any maintenance.

  • High capacities and high lift heights

    Robust structure and stability Nested I-sections The upright rails with an I-section show a 55% higher torsional rigidity than common flat profiles Lower deformation even when under lateral pressure.

    Result:
    Durability and stability are enhanced - even at high lift heights.

  • Maximum visibility

    Overhead guard
    The overhead guard safety bars are in alignment with the driver’s line of sight.

  • Maximum visibility

    Visibility through the upright.
    Maximum visibility through the upright thanks to particularly wide upright bars and a laterally rotated center cylinder.

  • Useful options available

    Zum Beispiel:
    Fork camera with monitor for safety and high throughput rate.

  • Mast damping

    Gently move loads.
    Gentle lifting and lowering due to integrated hydraulic damping system Soft transition between upright rails No loud banging when lowering Increases durability of the components.

  • No-wear support arm brakes

    Enhanced safety as a standard configuration.
    Two no-wear support arm brakes provide efficient braking each time brakes are deployed. Unlike in drum brakes, the brakes do not require any maintenance.

  • SRX Bild (2) Bearbeitet
  •  DSC5597 Bearbeitet
  •  DSC5651 Bearbeitet
  •  DSC5979 Bearbeitet

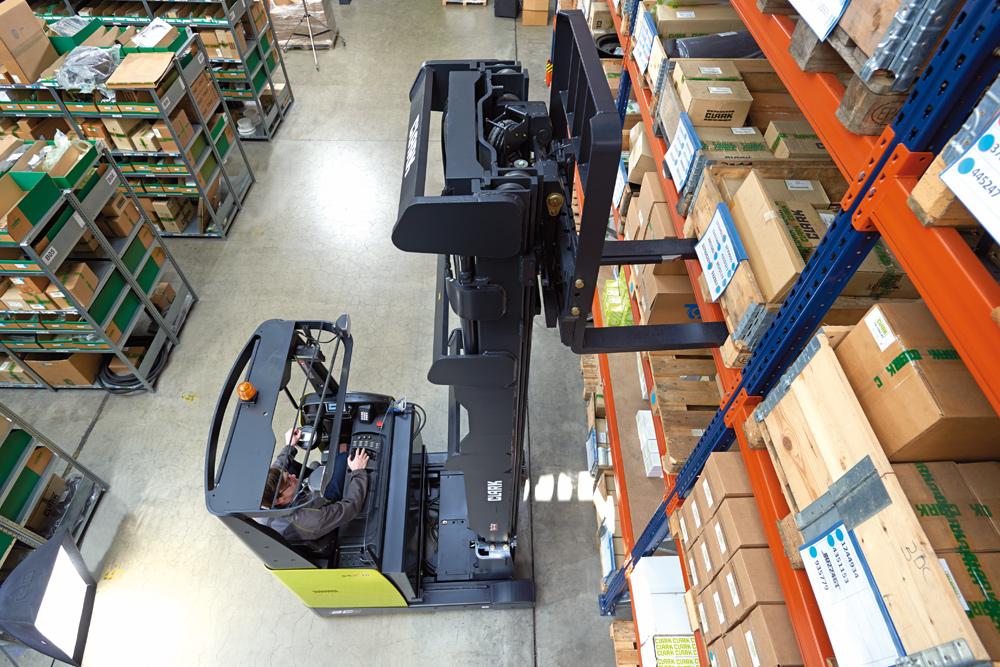

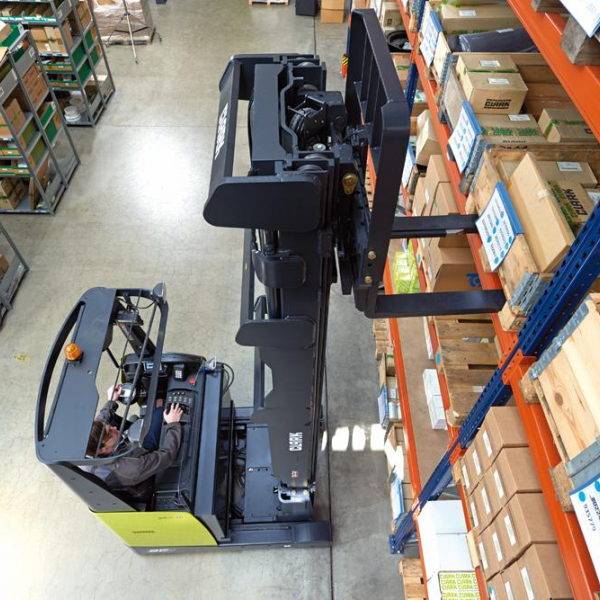

    Comprehensive standard configuration

    Comprehensive standard configuration

    The SRX series has a number of standard configuration details enhancing safety and productivity when the equipment is in use:

    • No-wear support arm brake
    • Tilting Fork carriage
    • High travel speed (up to 14 km/h)
    • Upright with CLARK upright damping
    • Electronic 180° or 360° steering
    • Support arm rollers with protective guards
    • Lateral battery removal via rollers
    • Battery feed for easy maintenance

    SRX14/16 review

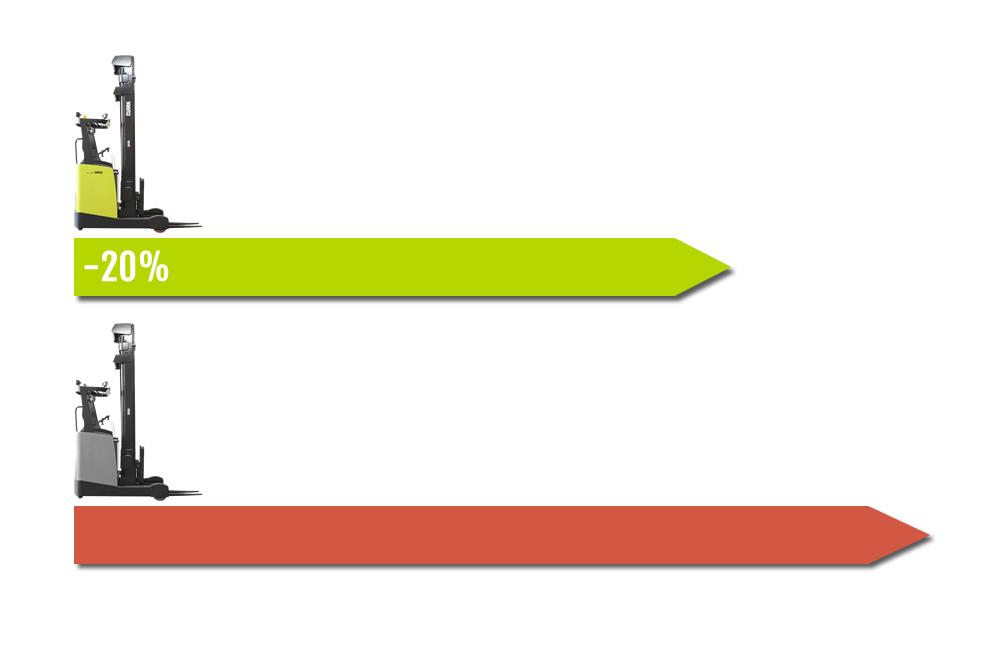

    Why support arm brakes?

    Why support arm brakes?

    • 20% shorter braking distance due to support arm brakes as standard
    • Shorter braking distance = improved safety
    • Fast deceleration from up to 14 km/h travel speed in the warehouse, improves stock movement and improves safety.

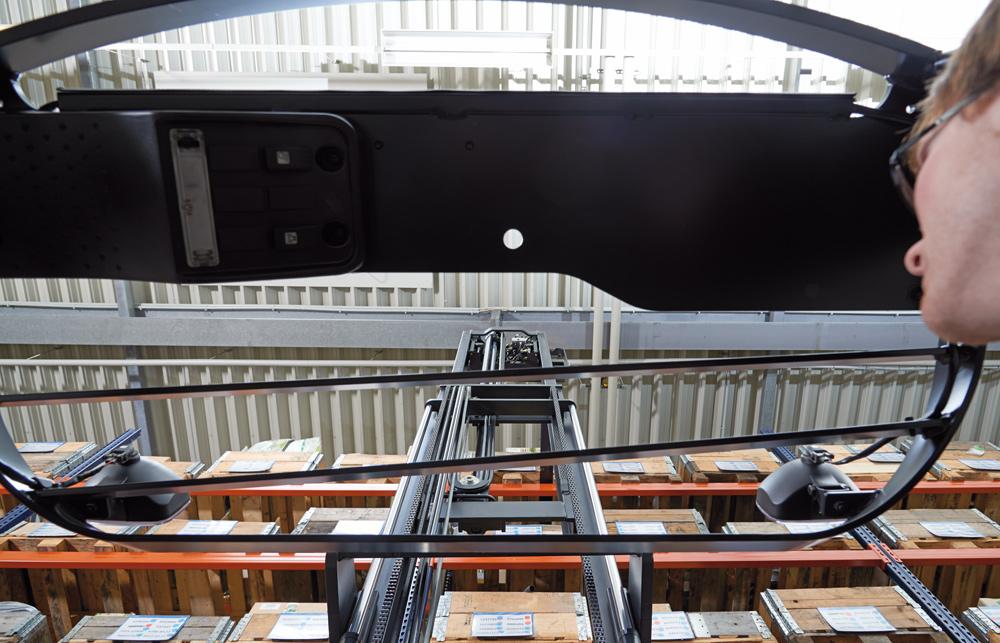

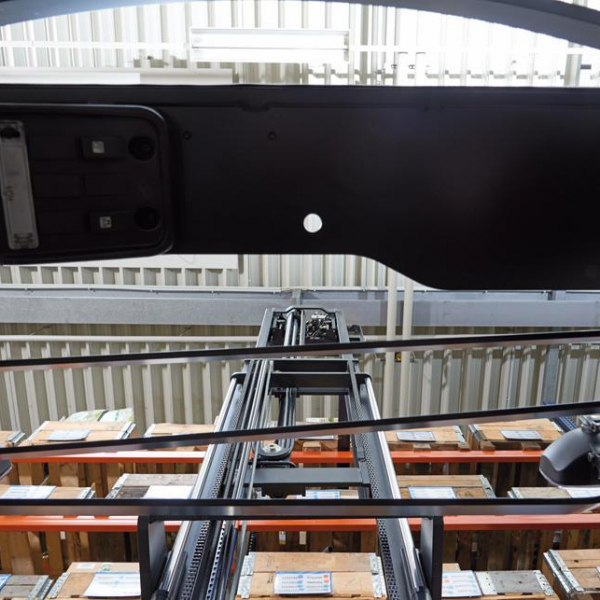

    Maximum visibility

    Maximum visibility

    • The overhead guard safety bars are in alignment with the driver’s line of sight
    • Perfect visibility through the upright due to particularly wide upright bars
    • Laterally rotated center cylinder
    Ergonomics and driver's compartment

    Ergonomics and driver's compartment

    • Adjustable comfort seat
    • Boarding height of only 380 mm due to low foot step
    • Sensitive electric steering Adjustable Steering wheel position.
    • Useful storage compartment
    Easy safe handling

    Easy safe handling

    • Mini¬levers or mono¬joystick
    • Hydraulics functions controllable simultaneously
    • 180° or 360° steering
    • Deceleration when cornering
    • Spacious and excellent visibility

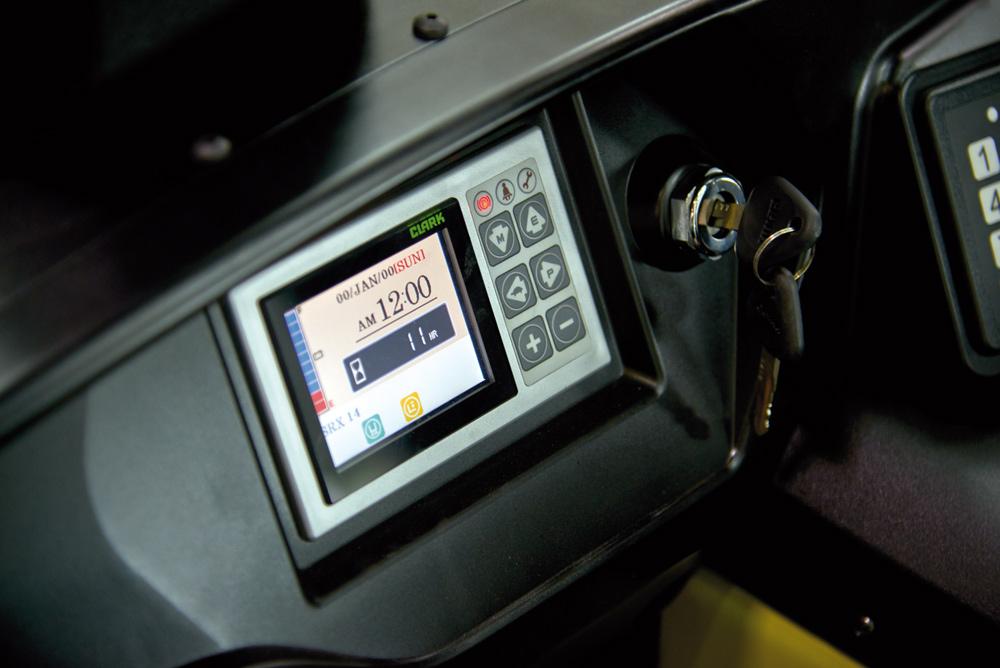

    Productivity and energy efficiency

    Productivity and energy efficiency

    • Customized programming of operation to suit all applications
    • Maximum adjustment to each work situation

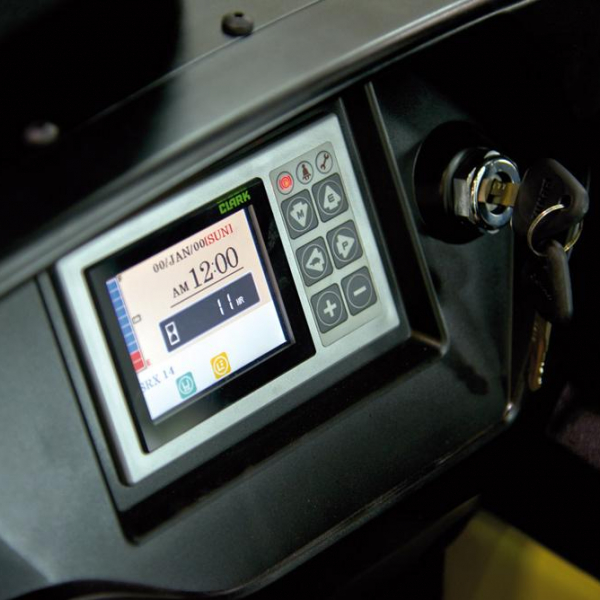

    • Large clear operators display
    • All settings and functions at a glance - adjustable without special software
    Reach trucks with wide chassis versionReach trucks with wide chassis version

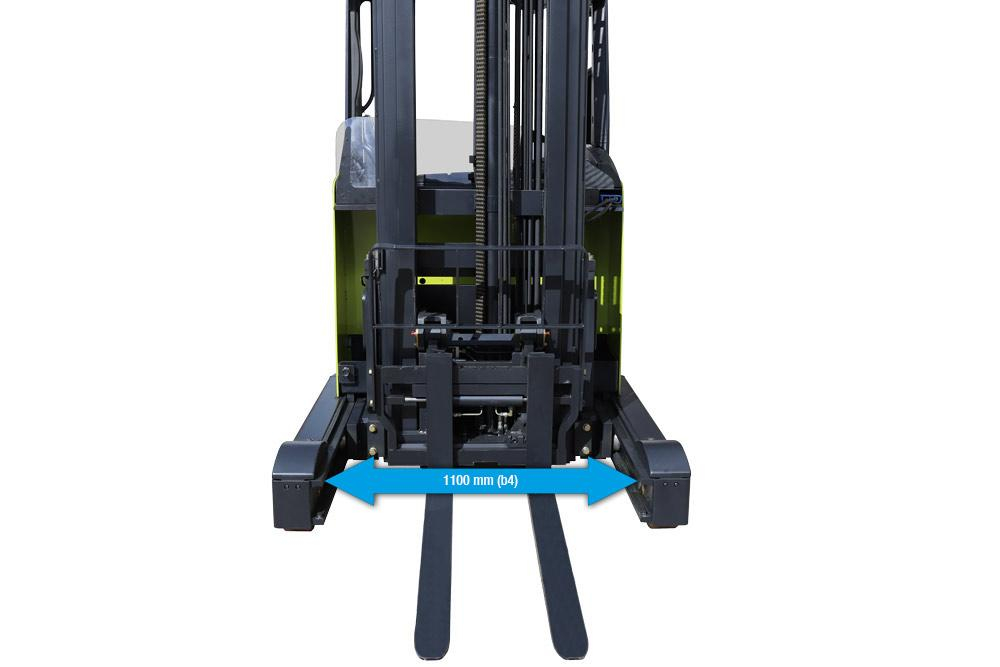

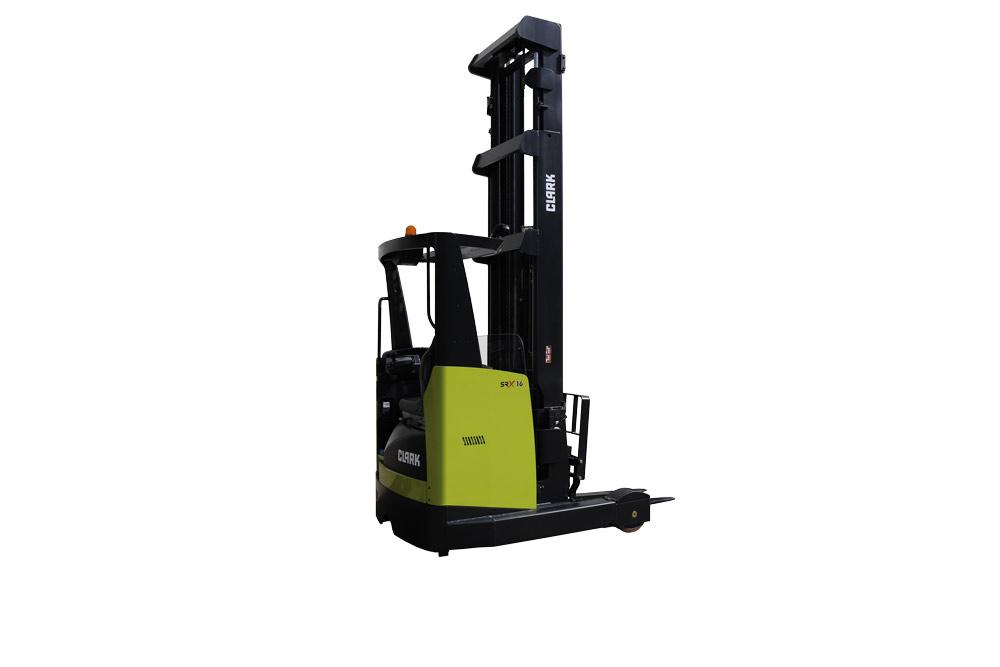

    Reach trucks with wide chassis version

    • Extends the possibilities for transporting various transport aids.
    • Optimally suited for the transport of industrial pallets with a width of 1000 mm
    • Increased distance between support arms of 1100 mm (b4)



    Configuration options well worth it

    The CLARK SRX14¬16 series was designed to meet the highest expectations. Numerous options, such as fork camera, automatic horizontal fork positioning and more, ensure that the vehicle meets the project specifications in full.

    Automatic horizontal fork positioning

    Suitable in particular for large lift heights No unsafe estimates of fork angles

    Automatic side shift centering

    Safe and easy handling, Speeds up positioning on the shelving units.

    Lift height preselector

    Fork stops automatically at the desired lift height, Improved throughput rate due to faster positioning Decreases load damage or damage to the shelving system

    Fork positioner

    Easily stores cages and different loads Accelerates transportation of goods of different dimensions.

    Battery compartment sizes

    Three capacity options (465/620/775 Ah) Standard lateral battery removal

    Mini-levers or mono-joystick

    100% proportional lifting and lowering with Ergonomic armrest

    Activation using PIN code

    Activation without an ignition key by using four-digit PIN code Configuration settings include automatic shutdown.

    Fork camera and monitor

    Improved ergonomics. No need to look up to the merchandise. Quicker access to higher shelving units. Noticeable relief for the driver.
