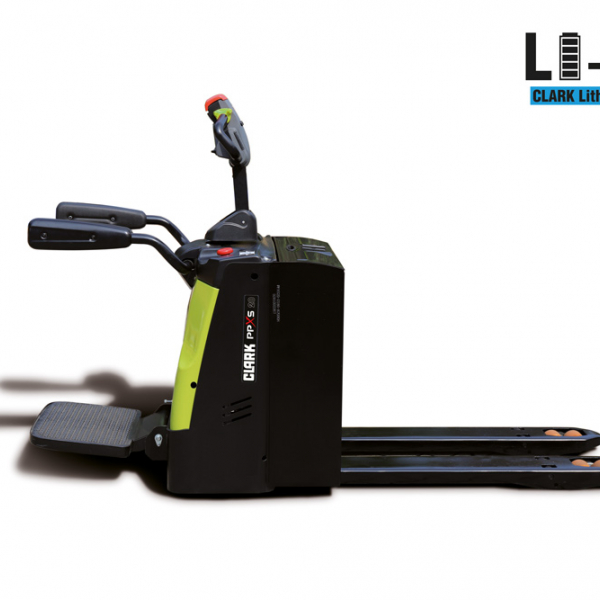

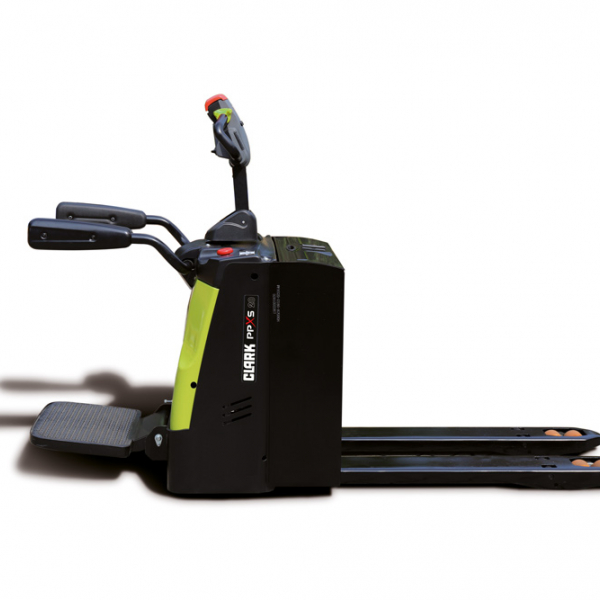

Electric low lift pallet truck PPXS20

Platform version
Capacity: 2000 kg

PPX(S)20

PPX(S)20 2000 kg





loadmax. 2000 kg
Forkmax. 210 mm
speedmax. 8/12 km/h
engine1.5/2.5 kW
max. 500 Ah/5hr
astmin. 1984 mm



Productivity at its finest. High travel speed. High mileage.

Whether it is for loading or unloading trucks or heavy-duty material transportation in the warehouse, the CLARK PPX(S)20 series is designed for heavy-duty operation and can be equipped with batteries up to 500 Ah. In addition, two- and three-shift operations are possible due to the optional lateral battery removal.

Power steering as a standard feature

  • Electric steering for comfortable driving

Customized programming

  • Acceleration, deceleration when cornering, regenerative braking and many other parameters of driving behavior can be adjusted to suit any requirement

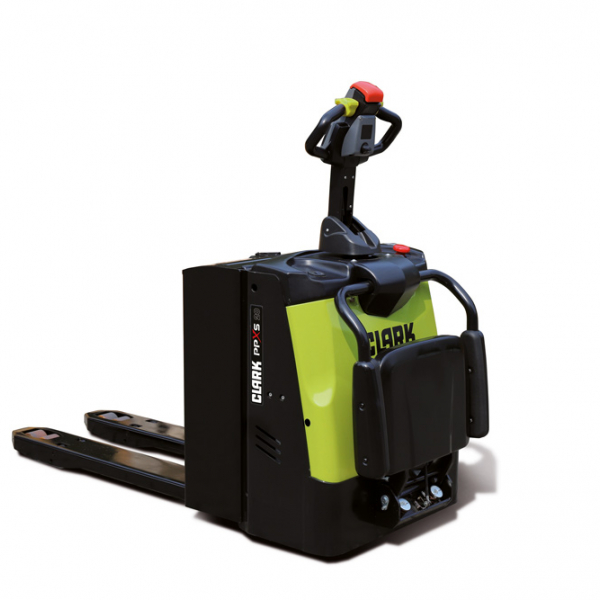

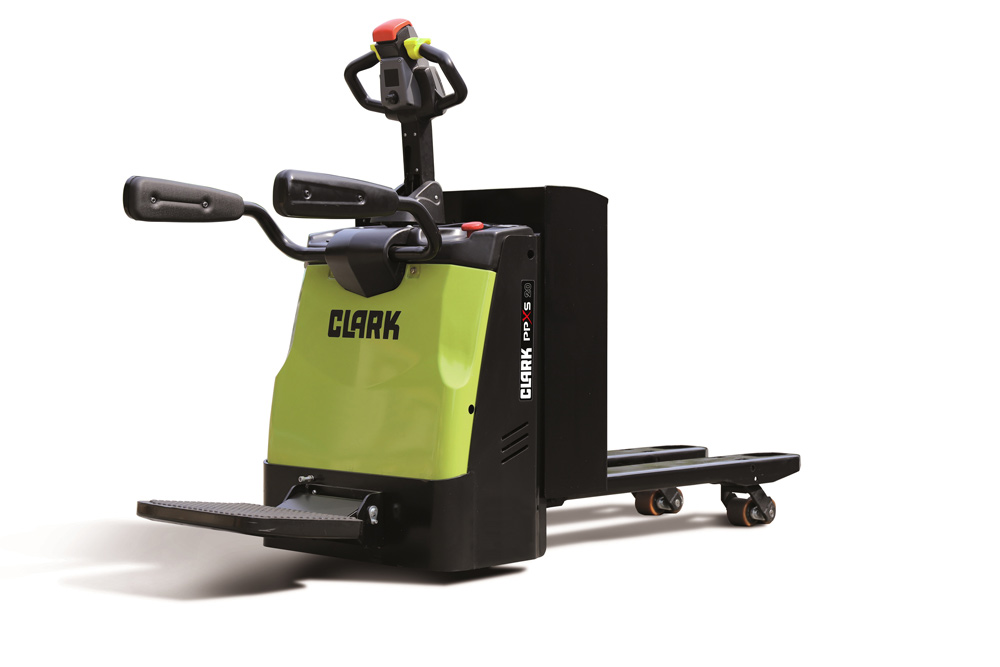

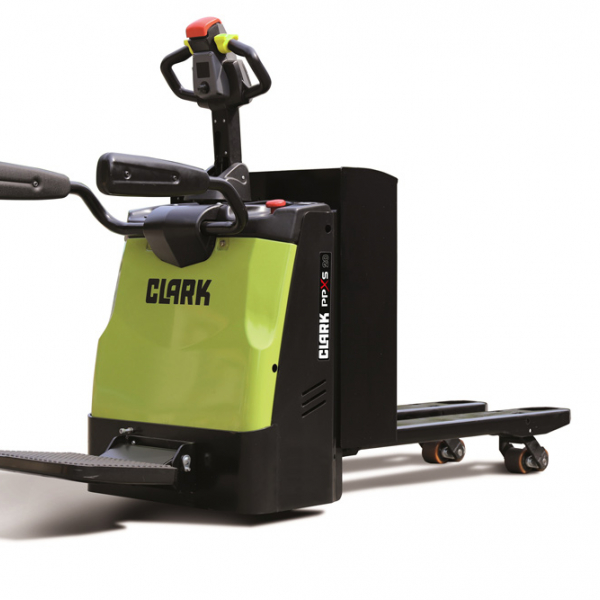

Collapsible driver’s platform

  • Improved safety and ergonomics
  • Better panoramic view
  • Low tread height of the platform of only 160 mm makes entering and exiting easy
  • When the operator leaves the platform, the vehicle automatically changes to stand-by mode and can no longer be moved

Collapsible lateral hoop guards

  • Safe grip and maximum safety

The platform and hoop guards are collapsible to enable turning without any problems even in the most narrow aisles

Reliability and serviceability

  • One-piece hood for easy access for maintenance
  • Strong structure with metal battery cover
  • Battery compartment for batteries of up to 500 Ah

Two lift cylinders

  • Longer service life due to less wear and even load distribution even if loads are off-center
  • Power steering as a standard feature

    • Electric steering for comfortable driving

    Customized programming

    • Acceleration, deceleration when cornering, regenerative braking and many other parameters of driving behavior can be adjusted to suit any requirement
  • Collapsible driver’s platform

    • Improved safety and ergonomics
    • Better panoramic view
    • Low tread height of the platform of only 160 mm makes entering and exiting easy
    • When the operator leaves the platform, the vehicle automatically changes to stand-by mode and can no longer be moved
  • Collapsible lateral hoop guards

    • Safe grip and maximum safety

    The platform and hoop guards are collapsible to enable turning without any problems even in the most narrow aisles

  • Reliability and serviceability

    • One-piece hood for easy access for maintenance
    • Strong structure with metal battery cover
    • Battery compartment for batteries of up to 500 Ah
  • Two lift cylinders

    • Longer service life due to less wear and even load distribution even if loads are off-center

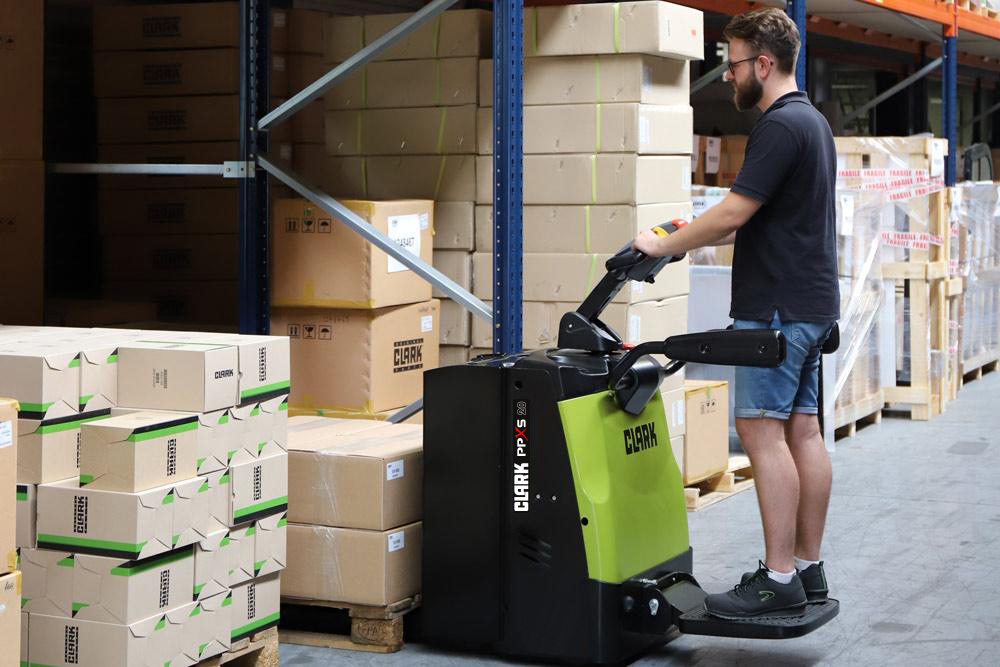

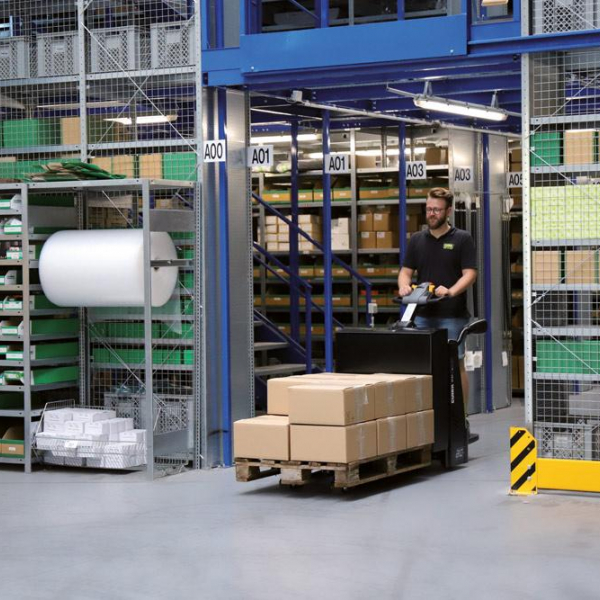

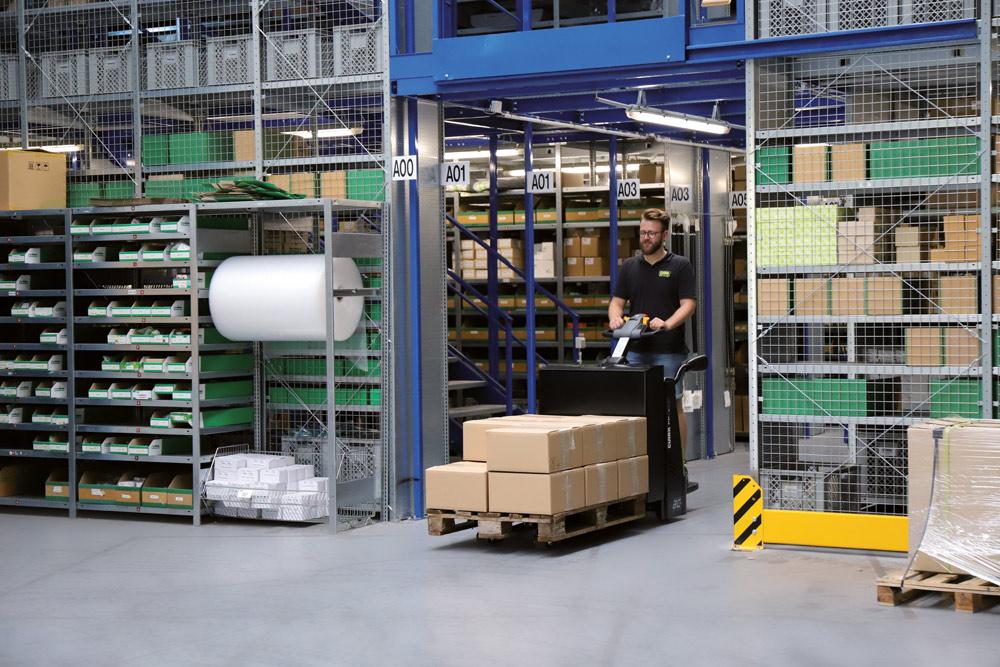

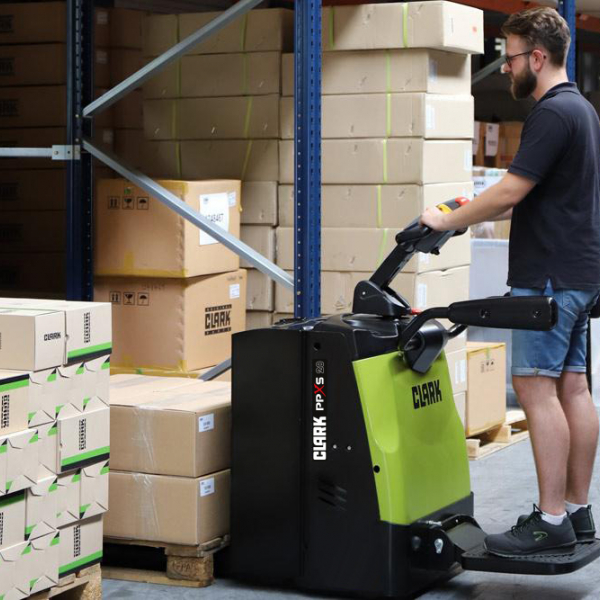

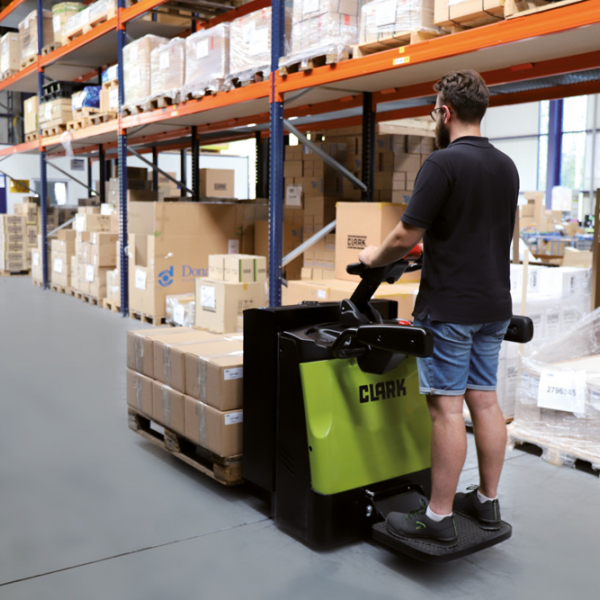

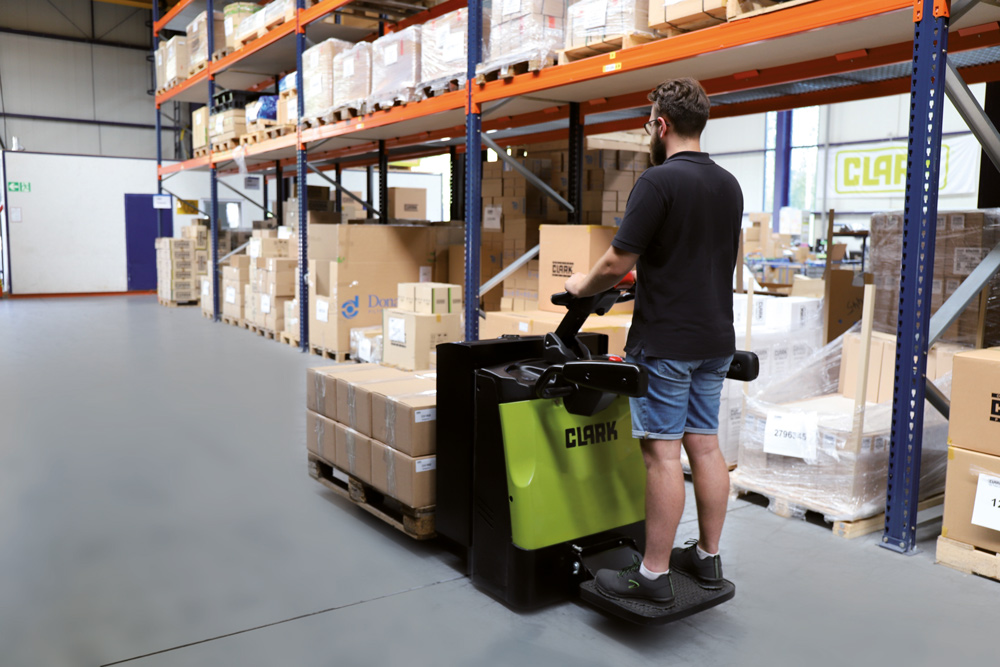

    • PPX20 Application
    • PPX20 Application

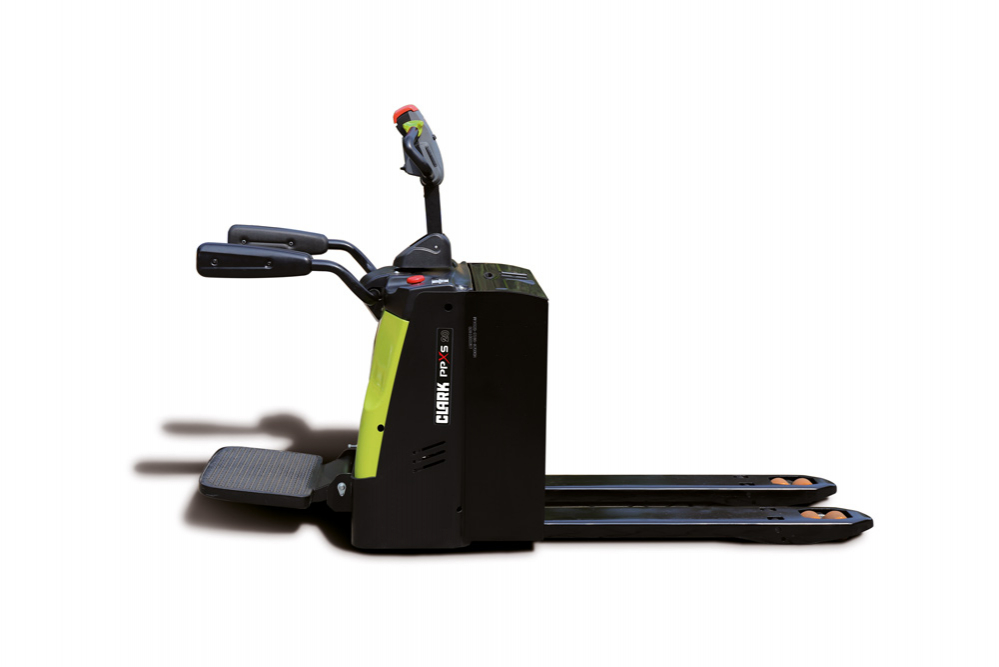

    • PPX20
    • Handle



      Features and benefits

      Features and benefits

      High travel speed

      • Speed of 8.5 km/h with the PPX20 and 12 km/h with the PPXS20 when the driver’s platform and lateral hoop guards are deployed ensure a high degree of productivity

      Powerful 24 V AC drive motors

      • Powerful acceleration and high speed even when fully loaded

      Strong batteries

      • Long performance due to battery capacities of up 500 Ah
      Comfort and ergonomics

      Comfort and ergonomics

      Power steering as a standard feature (PPXS20)

      • Automatic deceleration when cornering proportional to the steering angle
      • Reduces centrifugal power affecting the driver

      Compact design

      • Excellent view of the fork tips
      • Easy operation in narrow spaces in pedestrian-operated mode (6 km/h) with raised platform

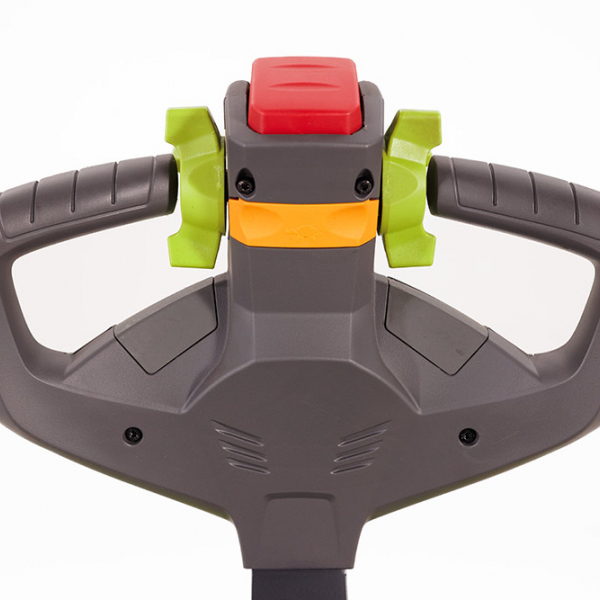

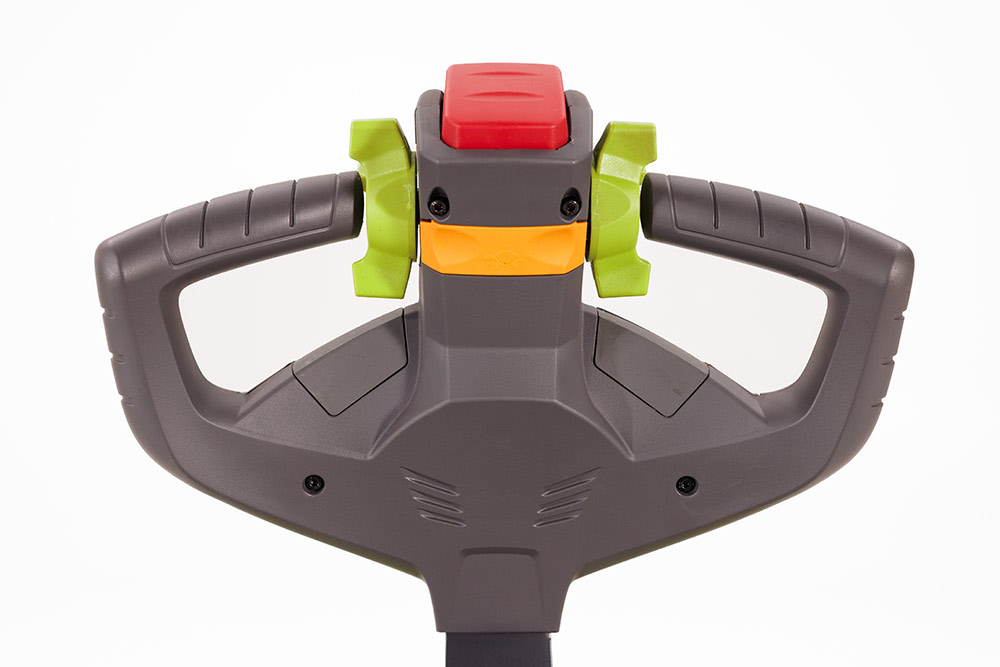

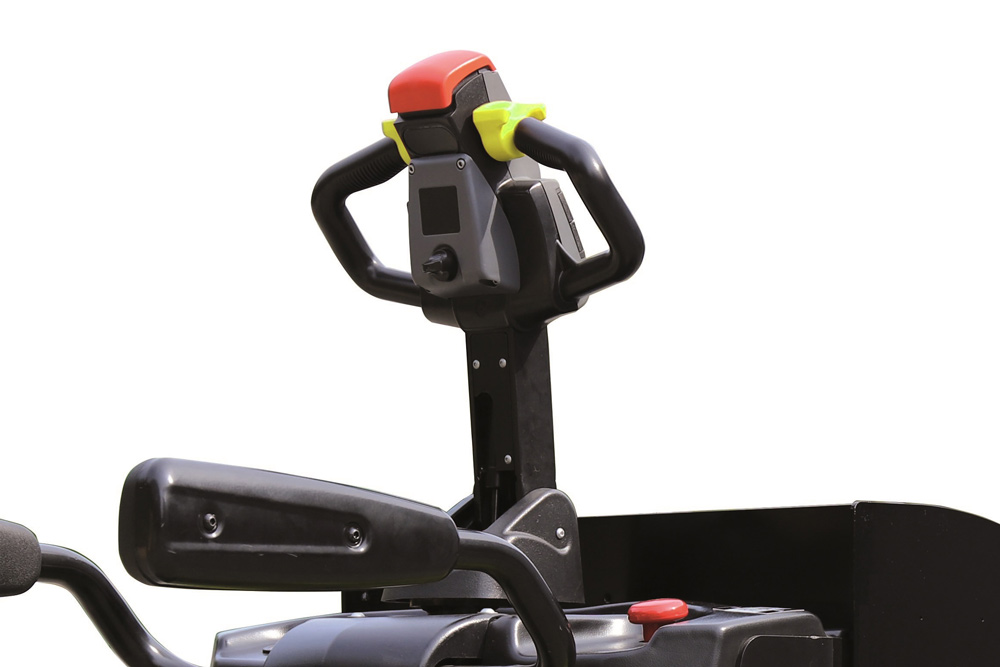

      Ergonomic and safe tiller

      Ergonomic and safe tiller

      • Simple and fast implementation of control commands
      • Automated soft deceleration and return into the neutral position when tiller is released.

      Automatic parking brake

      • Safe operation on slopes and ramps
      • Automatic parking brake is released when driving switch is activated
