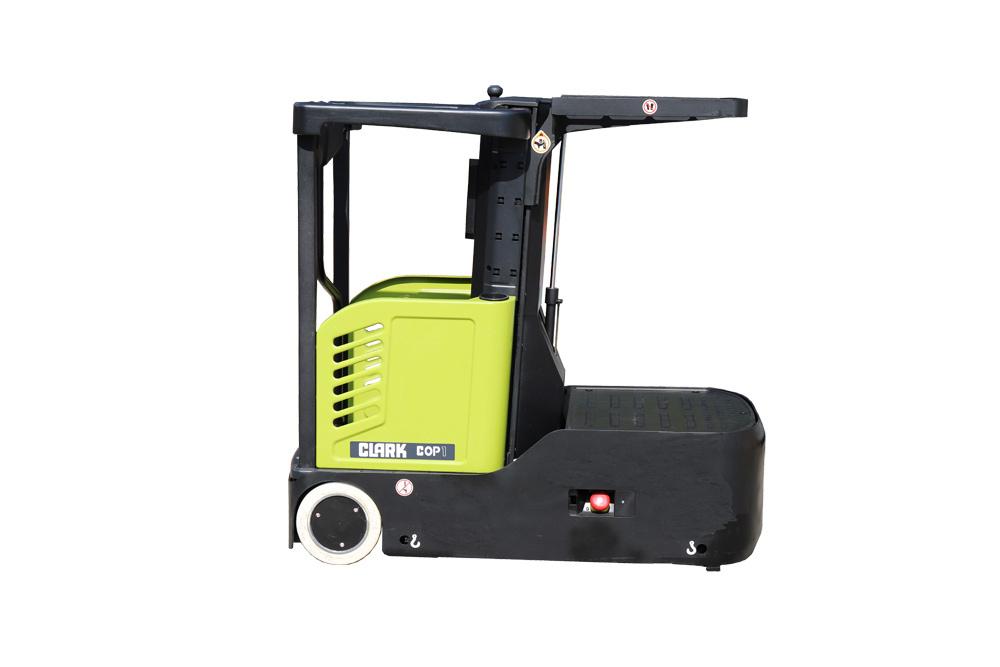

Order picker COP1

Multifunctional order picker with working platform
Capacity: 226 kg

COP1

COP1 226 kg

Brochure
SpecSheet
Press release
Video


(upper shelf):max. 90 kg

(upper shelf):
max. 90 kg

(lower shelf):max. 110 kg

(lower shelf):
max. 110 kg

max. 2.990 mm

max. 2.990 mm

max. 6 km/h

max. 6 km/h

0,65 kw/h

0,65 kw/h

24 Volt 120 Ah

24 Volt 120 Ah




Fast and safe work

The COP1 multifunctional order picker is not only extremely efficient for picking goods, but also – thanks to the working platform that can be elevated – proves its worth as rolling ladder or operating platform.
The COP1 is the ideal helper in wholesale and retail, distribution and the food and beverage industry.
The COP1 is perfect for use in offices, hotels, museums, hospitals or in trade fair construction.
When used inside and on flat floors, the vehicle can be used to fill shelves, conduct inventory, decorate rooms, mount signs, replace lamps or complete cleaning and repair work.

Lithium-Ionen-Niederhubwagen-WPio20

Picking at reach heights of up to 5 m

Travel speed of up to 6 km/h adapted to the lifting height

With a total width of only 750 mm and a turning radius of only 1,260 mm, the vehicle is easy to manoeuvre in narrow aisles or confined working areas - even narrow doors up to 80 cm are no problem.

When the working platform is lifted, the safety bars lock automatically.

  • Picking at reach heights of up to 5 m

  • Travel speed of up to 6 km/h adapted to the lifting height

  • With a total width of only 750 mm and a turning radius of only 1,260 mm, the vehicle is easy to manoeuvre in narrow aisles or confined working areas - even narrow doors up to 80 cm are no problem.

  • When the working platform is lifted, the safety bars lock automatically.



    • COP1 Top View application
    • Clark COP1 Bedienpanel 02
    • Clark COP Motor 03
    • Clark COP1 Sicherheitsfeature 01



      SAFETY

      SAFETY

      The CLARK COP1 offers all the prerequisites for safe operation throughout the working day.

      • Automatically closing safety bars when entering or leaving the working platform
      • The working platform can only be lifted with the safety bars closed
      • Safe two-handed operation so that the driver remains within the vehicle contour when the vehicle is moved
      • The ergonomic steering knob provides intuitive and precise operation of the vehicle
      • Safe use in low-light working areas and warning for oncoming traffic thanks to integrated LED light
      • Small parts can be safely stowed away in the standard storage compartments
      • The stable mast ensures a high level of safety even when extended
      • The robust steel frame protects the vehicle from damage
      • No external plastic parts are used
      • Externally operated emergency shut-down and hydraulic emergency lowering
      • As standard slack chain monitoring, increases safety in everyday work

      COST REDUCTION

      COST REDUCTION

      The vehicle is not only extremely efficient for picking goods, but also proves its worth as rolling ladder or operating platform. Compared to a conventional rolling ladder, the COP1 not only saves time by eliminating the need to climb up and down, but the risk of an accident or damage to the goods is also lowered.

      Cost savings due to the battery and charging technology

      • Maintenance-free battery with 120 Ah (AGM)
      • Integrated charger for charging processes at any standard 230 Volt sockets
      • The charger cable is integrated in the vehicle
      • Neither charging rooms nor ventilation systems are required, as the charging process generates no gases

      FLEXIBILITY

      FLEXIBILITY

      The COP1’s manoeuvrability is also worth a special mention. The vehicle turns on the spot and can be used in almost any flat working area. Furthermore, the COP1 can be adjusted to your application:

      Adaptable driving
      The braking behaviour, acceleration and regenerative braking of the vehicle can be adapted to the respective situation.

      Height-adjustable shelf
      The height-adjustable shelf has an adjustment range of 485 mm. This allows goods of varying sizes to be picked.

      Optional warning signals
      Different driving or lowering signals can be optionally supplied.

      Optional with Lithium-Ion battery
      If the application requires higher availability, the COP1 can optionally be equipped ex works with a 120 Ah Lithium-Ion-battery. Therefore, break times can be easily used for interim charging.



      ORDER PICKING OR INVENTORY WORK

      ORDER PICKING OR INVENTORY WORK

      REPAIR OR MAINTENANCE WORK

      REPAIR OR MAINTENANCE WORK

      TRANSPORT OF SMALL PARTS

      TRANSPORT OF SMALL PARTS

      The ideal solution for almost any application area

      Whether for repair and maintenance work indoors on level floors or for lifting small parts to a gallery, the COP1 is the ideal helper. The vehicle is not only suitable for classic order picking, but also proves itself in filling shelves, conducting inventory, decorating rooms, mounting signs or boards, replacing lamps or completing cleaning and repair work.



      STANDARD SAFETY FEATURES GUARANTEE SAFE USE

      STANDARD SAFETY FEATURES GUARANTEE SAFE USE

      • electrically monitored safety bars
      • optical hand sensors
      • a dead man’s switch in the footwell
      • a tilting sensor
      • a safety sensor under the working platform



      Height-adjustable shelf

      with longitudinal slots, so that the operator always has a good downward view.

      Two cup holders and a storage compartment

      for documents make everyday work easier for the operator.

      The ergonomic steering controls

      ensures intuitive and precise operation.

      Safety sensor under the working platform

      So that accidents are prevented when lowering the working platform.

      Safety monitoring

      It is only possible to raise the working platform when the safety bars are locked. The padded door bar also serves as a backrest.

      Dead man’s switch in the footwell

      The dead man’s switches ensure that the operator has to stand firmly on the platform. As soon as the dead man’s switch loses contact, the driving, lowering and lifting functions are automatically deactivated.
